Patriot Gate Opener Manuals

Alert
Please choose the appropriate manual for your gate opener. This is determined by the part number of the control board located near the top where it reads “USAutomatic”. This is important as each control board revision has different features and we want to be sure you match the correct manual with your control board revision.

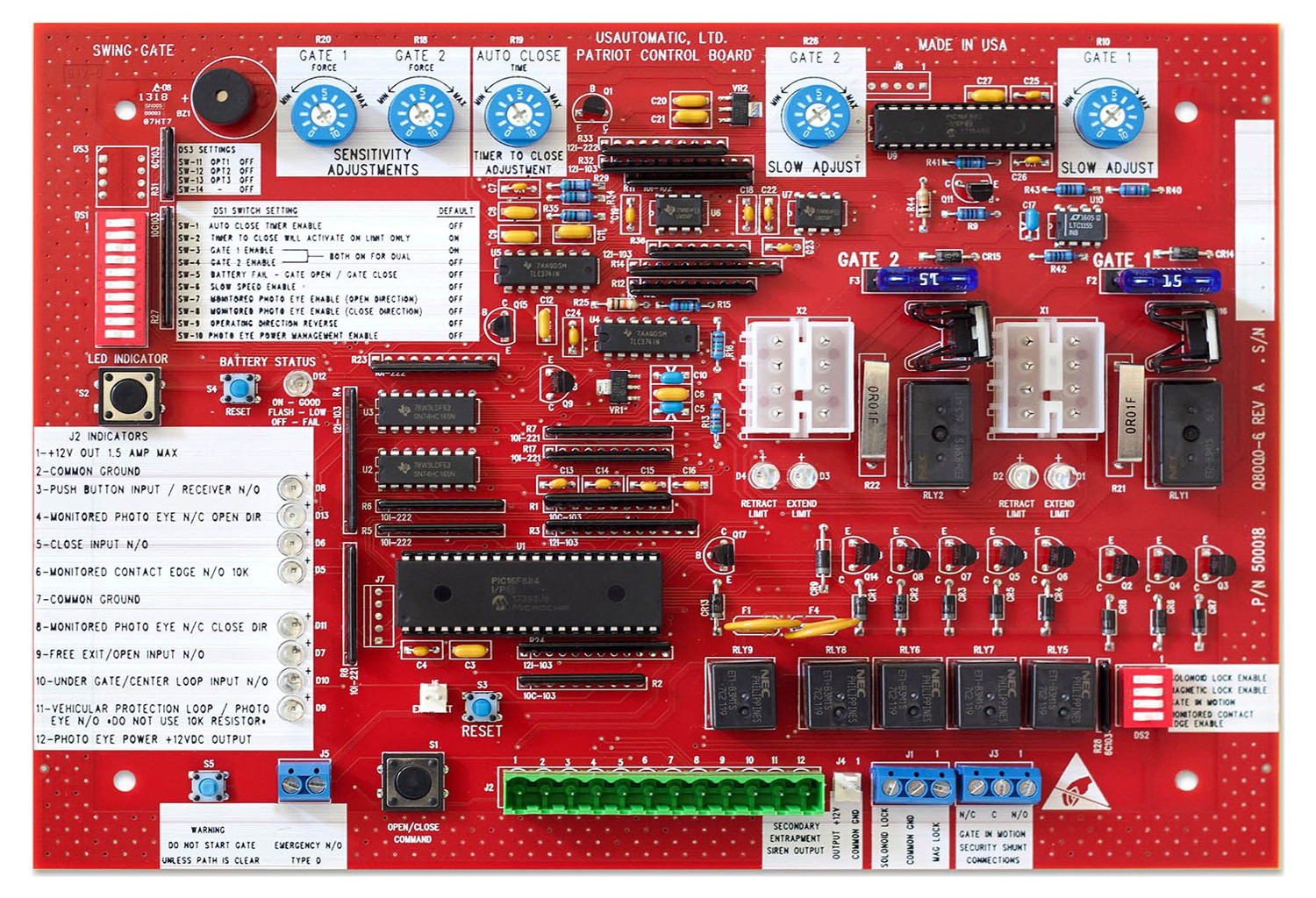

Control Board PN#: 500018 (Current Release)


Serial numbers starting with:
  1. RP1, RP2, RP5, RP6, RP7, RP8, RP9 (4 digits)
  2. RP10, RP11, RP12, RP13, RP14, RP15 (5 digits)

Control Board PN#: 500001

Alert
Your board may not have the '500001' part number printed on it. Check the serial number to confirm this is the correct manual.


Serial numbers starting with:
  1. 9 (4 digits)
  2. 1, 2, 3, 4, 5 (5 digits)
  3. 6 (6 digits)

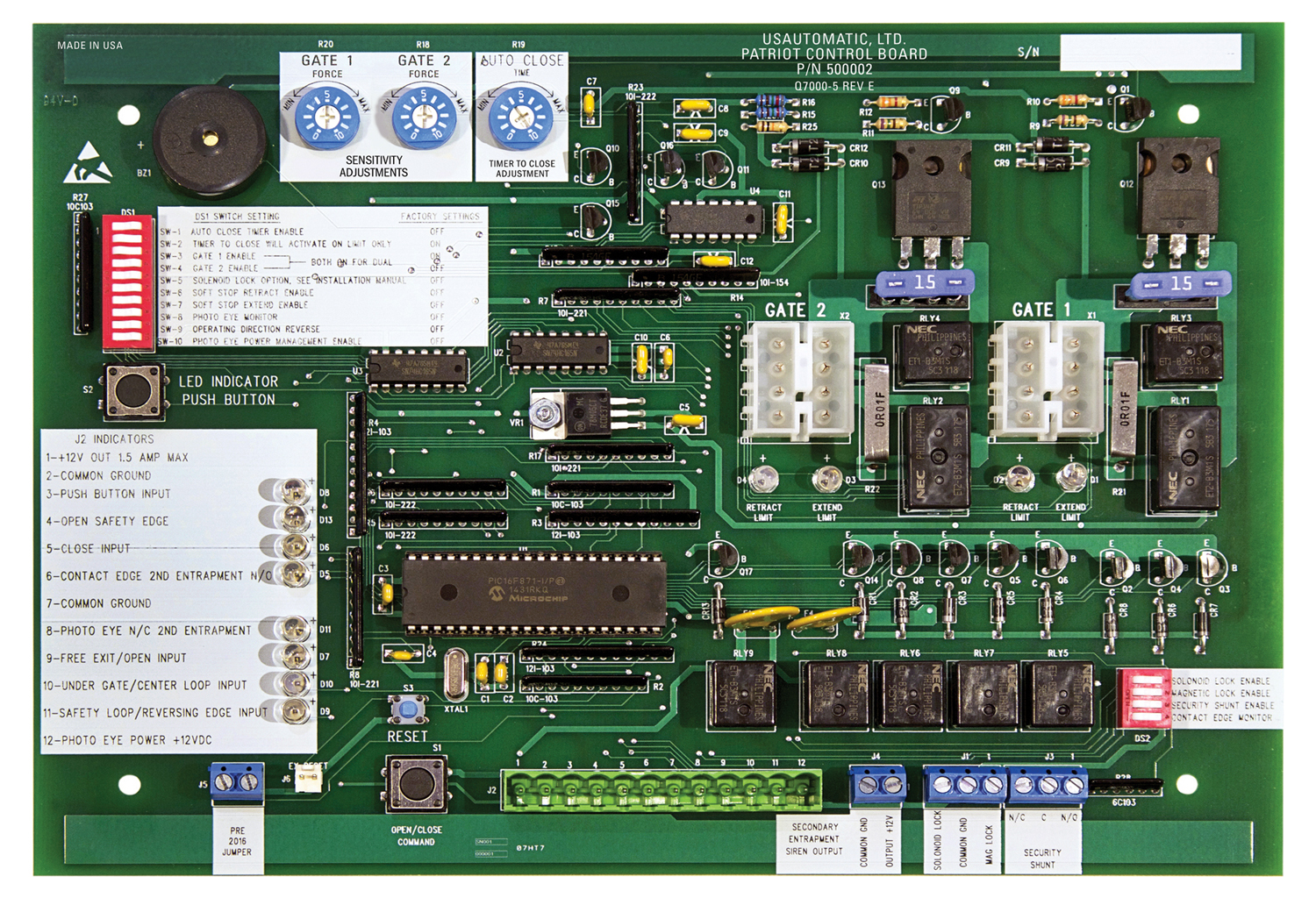

Control Board PN#: 500002


Serial numbers starting with:
  1. 7 (6 digits)

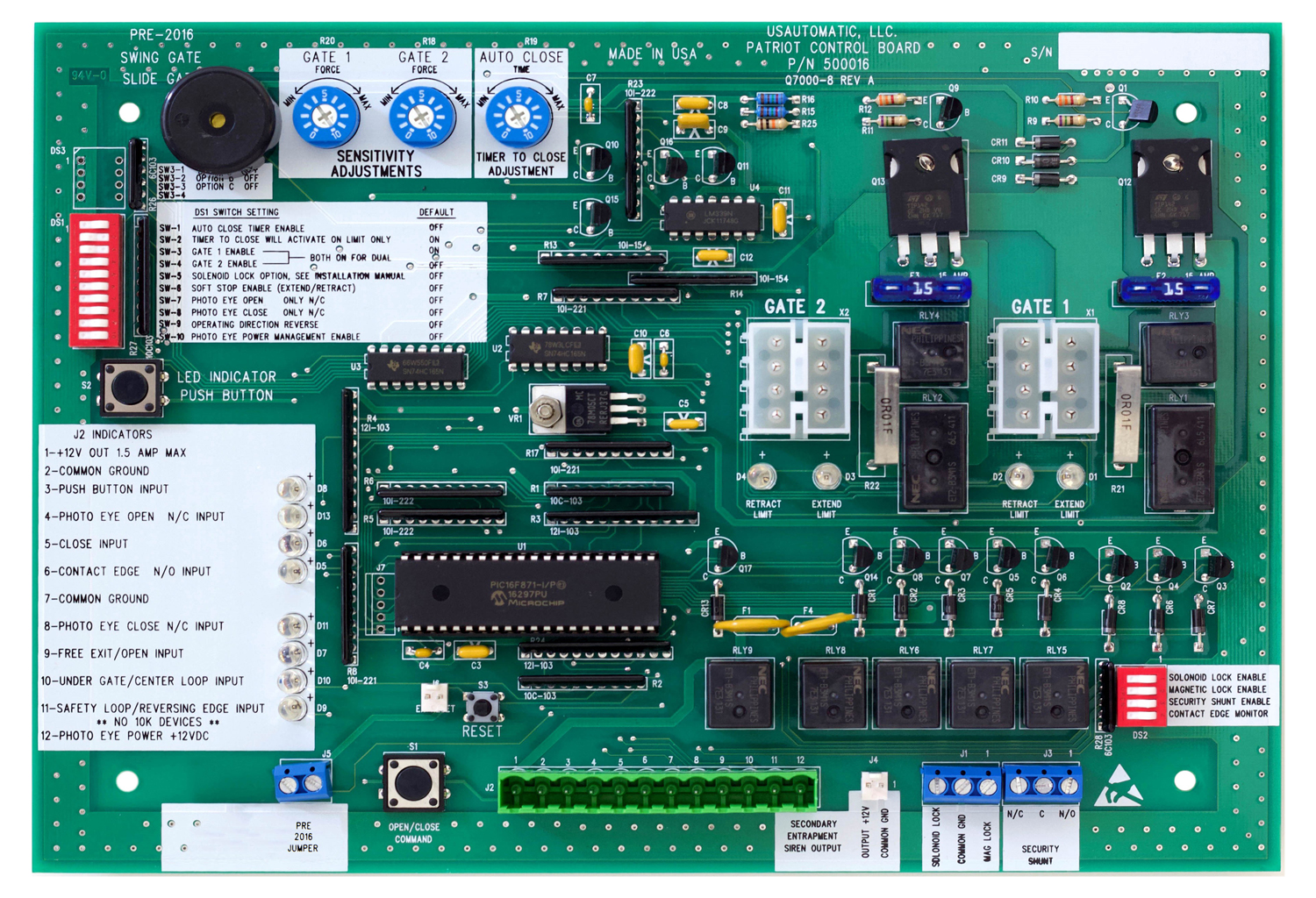

Control Board PN#: 500016


Serial numbers starting with:
  1. 8, 9 (6 digits)

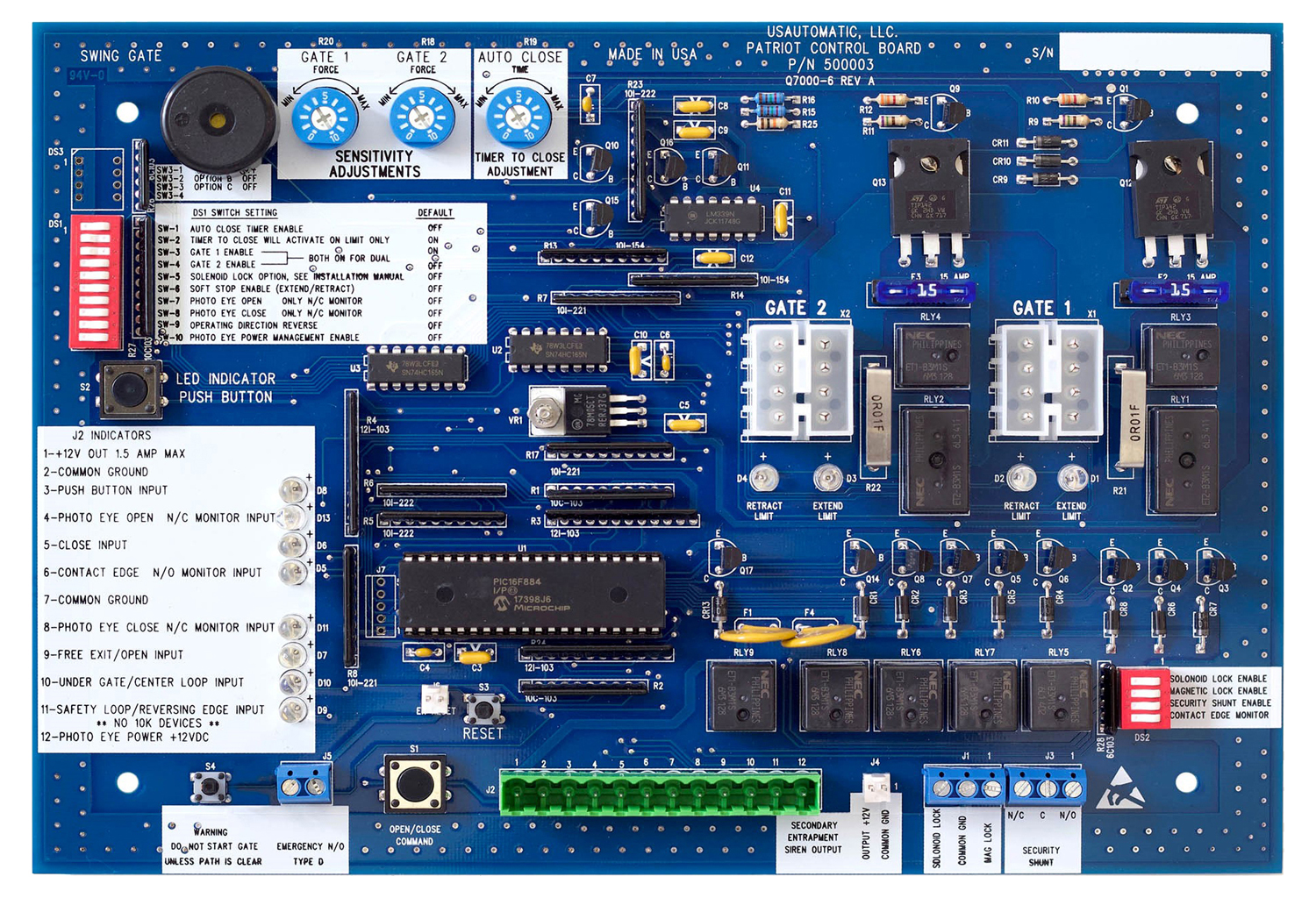

Control Board PN#: 500003


Serial numbers starting with:
  1. B1, B2, B3, B4, B5 (4 digits)
