Patriot - Gate Fully Open and Close Stop Positions are Changing (not consistent)

Patriot - Gate Fully Open and Close Stop Positions are Changing (not consistent)

Verify that the open and close positions are both changing randomly, before following these steps.

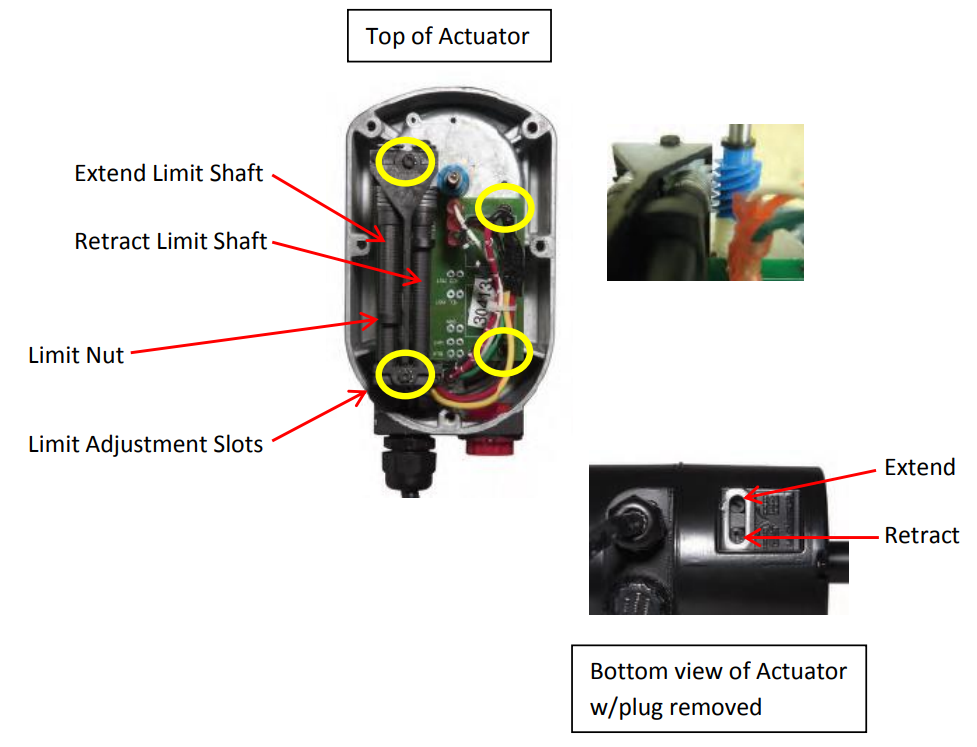

1. Remove the five 5/16 bolts from the back of the actuator to expose the limit assembly.
2. Loosen the 4 screws that hold the limit assembly in place (Yellow circles).
3. Gently push the limit assembly over reducing the spacing between the small white gear and the blue gear (see below).
4. While holding the limit assembly in place tighten the 4 screws.
5. Reinstall the rear housing and adjust retract and extend limits to desired stop positions.
